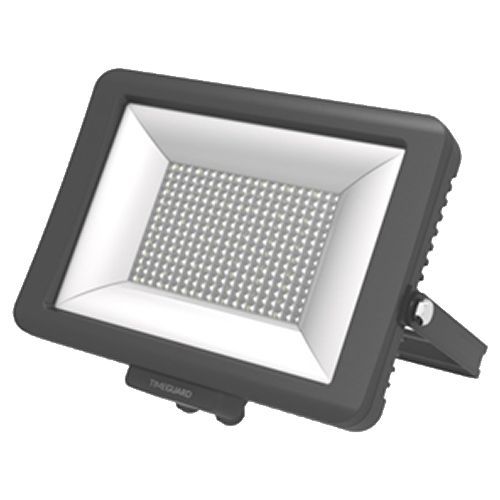

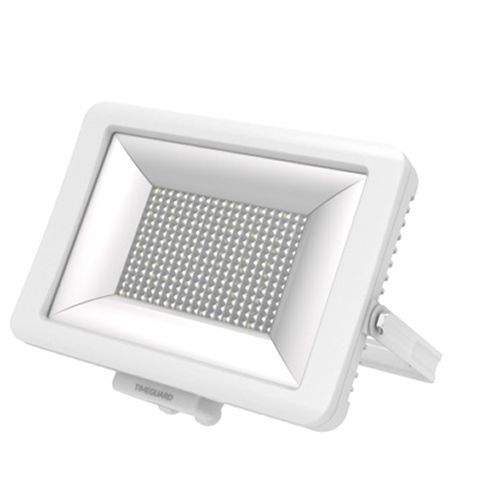

Timeguard 100W LED Professional Rewireable Floodlight

General

Operating Voltage

230v AC

Frequency

50Hz

Installation Type

Surface Mount

Class Rating

Class I

Lamp Wattage

100W LED Non replaceable lamp

Energy Usage

100kWh/1000h

Energy Efficiency

Class A

Lumen Output

10,000lm typical

Colour Temperature

5000K

Operating Temperature

-20°C to +40°C

Lamp Tilt Adjustment

360°

Accessories (Included)

Instructions, Fittings, U Bracket, M20 Glands

Accessories (Optional)

LEDPROPCB Photocell, LEDPROSLB PIR sensor, LEDPRORFKB RF Remote Controlled PIR sensor

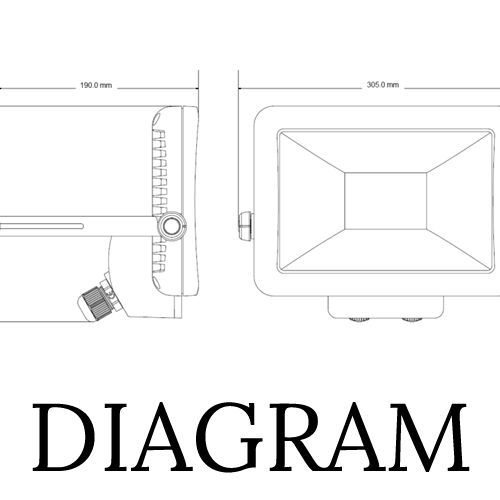

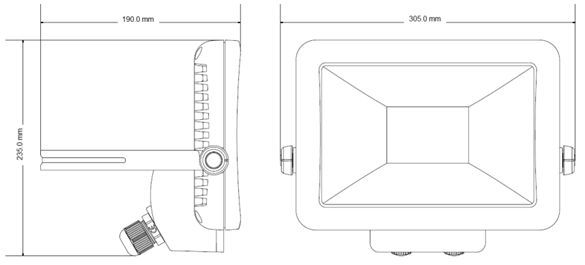

Dimensions

Height 235mm, Width 305mm, Depth 66mm (190mm Inc. bracket)

Mounting Centres

260mm

IP Rating

IP65

Weight

2188g

EAN

5012483014820

Designed In Accordance To

BS EN 62493:2010, BS EN60598-2-1, BS EN 61347-2-13

Includes updates and amendments.

Guarantee Period

3 Years

Construction

Body

Polycarbonate

Bracket

Painted Aluminium
