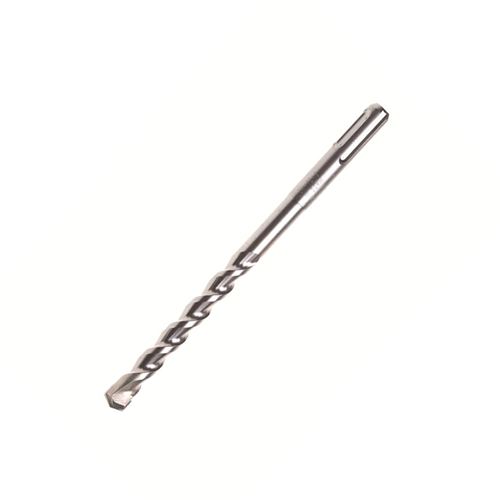

The professional standard for multiple hole drilling in masonry materials using an SDS Plus Machine
The cost effective and faster solution for producing holes in masonry

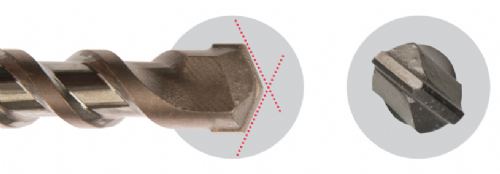

Hammer Grade Carbide Tip
Hammer grade tungsten carbide tip gives extended life in the hardest masonry materials
Copper Brazed to 1100oc
Furnace brazing process uses a copper braze heated to 1100oc giving the ultimate bond between body and tip, allowing the drill bit to withstand greater pressure and produce a greater number of holes
Precision Machining
Tip insertion is secured using purpose made machines operating to pre-set specifications & tolerances, ensuring a consistently accurate and perfectly centralised tip for rounder holes
SDS Plus can be used in:
- Heavy duty concrete
- General concrete
- Hard bricks
- Soft bricks
- Lightweight blocks
- Natural stone
- Constructional granite
- Limestone
SDS Plus are ideal when drilling holes for:
- Fixings & anchors
- Through holes for cables & wires
- Through holes for pipes
- Pilot holes for coring
- Property maintenance
Diameter Size mm | Overall Length mm | Working Length mm | Part Number | |
4.0 | 110 | 50 | S04.0X110 | |
4.0 | 160 | 100 | S04.0X160 | |
5.0 | 110 | 50 | S05.0X110 | |
5.0 | 160 | 100 | S05.0X160 | |
5.0 | 210 | 150 | S05.0X210 | |
5.5 | 110 | 50 | S05.5X110 | |
5.5 | 160 | 100 | S05.5X160 | |
5.5 | 210 | 150 | S05.5X210 | |
5.5 | 260 | 200 | S05.5X260 | |
6.0 | 110 | 50 | S06.0X110 | |
6.0 | 160 | 100 | S06.0X160 | |
6.0 | 210 | 150 | S06.0X210 | |
6.0 | 260 | 200 | S06.0X260 | |
6.0 | 450 | 400 | S06.0X450 | |
6.5 | 110 | 50 | S06.5X110 | |
6.5 | 160 | 100 | S06.5X160 | |
6.5 | 210 | 150 | S06.5X210 | |
6.5 | 250 | 200 | S06.5X250 | |
6.5 | 400 | 350 | S06.0X400 | |
7.0 | 110 | 50 | S07.0X110 | |
7.0 | 160 | 100 | S07.0X160 | |
7.0 | 210 | 150 | S07.0X210 | |
8.0 | 110 | 50 | S08.0X110 | |
8.0 | 160 | 100 | S08.0X160 | |
8.0 | 210 | 150 | S08.0X210 | |
8.0 | 260 | 200 | S08.0X260 | |
8.0 | 450 | 400 | S08.0X450 | |
8.0 | 600 | 550 | S08.0X600 | |
10.0 | 110 | 50 | S10.0X110 | |
10.0 | 160 | 100 | S10.0X160 | |
10.0 | 210 | 150 | S10.0X210 | |
10.0 | 260 | 200 | S10.0X260 | |
10.0 | 310 | 250 | S10.0X310 | |
10.0 | 450 | 400 | S10.0X450 | |
10.0 | 600 | 550 | S10.0X600 | |
10.0 | 1000 | 950 | S10.0X1000 | |
12.0 | 160 | 100 | S12.0X160 | |
12.0 | 210 | 150 | S12.0X210 | |
12.0 | 250 | 200 | S12.0X250 | |
12.0 | 300 | 250 | S12.0X300 | |
12.0 | 450 | 400 | S12.0X450 | |
12.0 | 600 | 550 | S12.0X600 | |
12.0 | 1000 | 950 | S12.0X1000 | |
13.0 | 250 | 200 | S13.0X250 | |
13.0 | 450 | 400 | S13.0X450 | |
14.0 | 150 | 100 | S14.0X150 | |
14.0 | 200 | 150 | S14.0X200 | |
14.0 | 250 | 200 | S14.0X250 | |
14.0 | 300 | 250 | S14.0X300 | |
14.0 | 450 | 400 | S14.0X450 | |
14.0 | 600 | 550 | S14.0X600 | |
14.0 | 1000 | 950 | S14.0X1000 | |
15.0 | 250 | 200 | S15.0X250 | |
16.0 | 150 | 100 | S16.0X150 | |
16.0 | 200 | 150 | S16.0X200 | |
16.0 | 250 | 200 | S16.0X250 | |
16.0 | 300 | 250 | S16.0X300 | |
16.0 | 450 | 400 | S16.0X450 | |
16.0 | 600 | 550 | S16.0X600 | |
16.0 | 1000 | 950 | S16.0X1000 | |
18.0 | 200 | 150 | S18.0X200 | |
18.0 | 250 | 200 | S18.0X250 | |
18.0 | 300 | 250 | S18.0X300 | |
18.0 | 450 | 400 | S18.0X450 | |
18.0 | 600 | 550 | S18.0X600 | |
18.0 | 1000 | 950 | S18.0X1000 | |
20.0 | 200 | 150 | S20.0X200 | |
20.0 | 250 | 200 | S20.0X250 | |
20.0 | 300 | 250 | S20.0X300 | |
20.0 | 450 | 400 | S20.0X450 | |
20.0 | 600 | 550 | S20.0X600 | |
20.0 | 1000 | 950 | S20.0X1000 | |
22.0 | 250 | 200 | S22.0X250 | |
22.0 | 450 | 400 | S22.0X450 | |
22.0 | 600 | 550 | S22.0X600 | |
22.0 | 1000 | 950 | S22.0X1000 | |
24.0 | 250 | 200 | S24.0X250 | |
24.0 | 450 | 400 | S24.0X450 | |
25.0 | 250 | 200 | S25.0X250 | |
25.0 | 450 | 400 | S25.0X450 | |
25.0 | 600 | 550 | S25.0X600 | |
25.0 | 1000 | 950 | S25.0X1000 | |
26.0 | 450 | 400 | S26.0X450 | |
28.0 | 450 | 400 | S28.0X450 | |
30.0 | 450 | 400 | S30.0X450 |
